It is an artificial intelligence system builts in with independent research and development of the core image intelligent processing algorithm, connected with

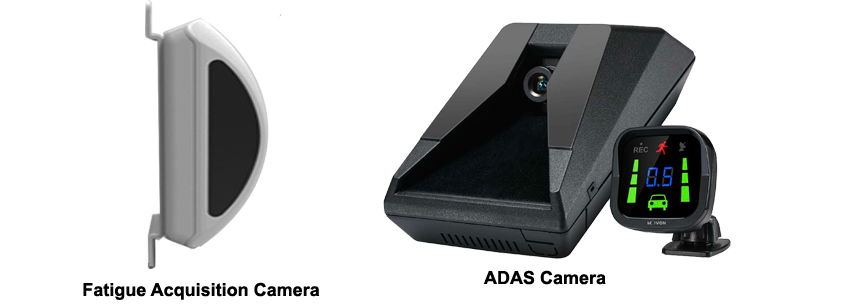

a Fatigue Acquisition Camera or/and ADAS Camera to real-time capture the characteristics of the driver's fatigue state image, and fast through the core analysis board of the host, give warning and reporting to the fatigue driving and unsafe driving behavior.
Product Features
(1) Fatigue driving detect
* Check drivers' fatiguing through eye and face change and give different level of alarm
* Adaptive alarm sensitivity adjustment based on vehicle speed
* All-weather environmental adaptation
(2) Identification of driver
* Face recognition algorithm
* Identity completion within 2 seconds
* Driver's identity registration, authentication and inquiry
* Support recognition results voice prompting and reporting
(3) Monitoring of bad driving behavior
* Monitoring and reporting on the behavior of yawning, fatigue driving
* Monitoring and reporting on the behavior of driving with a call
* Monitoring and reporting on the behavior of driving without seat belt
* Monitoring and reporting on the behavior of driving smoking
* Monitoring and reporting on the behavior of drive away from the line of sight
* Camera sheltered alarm
(4) Lane shift and crash alarming
* Lane shift detect and reporting
* Calculation of collision warning level based on real-time GPS speed
* Monitoring the driver lane change without turn on the turning light
Technical
1. When the alarm is triggered, the device automatically takes pictures of the corresponding behavior and stores it in the device's SD card. And sent the alarm information to the main control server in real time, and it supports the post query and transmission function.
2. Support RS-232, RS-485, CAN information transmission.
3. Supports 4G uploading alarm information and pictures to the platform.
4. Support outputs video in real time through the USB interface, which can be viewed through a mobile app.
5. Supports remote upgrades and can also be upgraded locally via the mobile app.
6. Real time video can be output through CVBS.

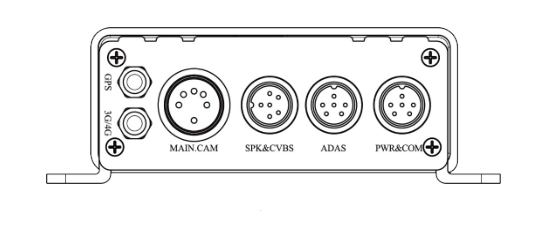

Interface Description
PWR&COM: Main power + Communication port（RS232）
ADAS: ADAS camera + Steering lamp signal interface
SPK&CVBS: SPK & CVBS Video output interface
MAIN.CAM: Anti fatigue acquisition camera interface
